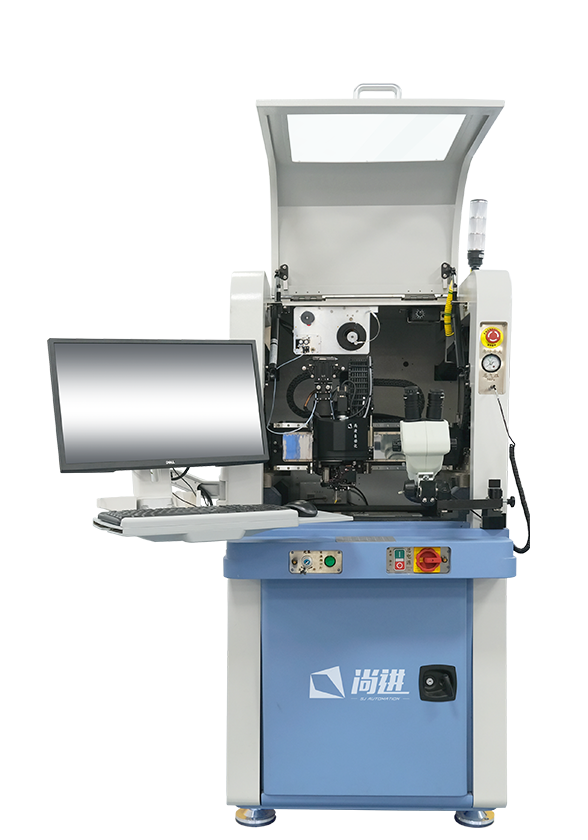

FULLY AUTOMATIC HEAVY WEDGE BONDER
TAURUS-Al
FEATURES：
1. Voice-coil wire clamp
2. Non-destructive pulltest
3. Active cutting method
4. Real time ultrasonic monitoring
5. Automatic bonding force calibration
6. Real time deformation monitoring
7.? Changing from rear-cut to front-cut conveniently
8. High-speed, high-precision linear-motor driven 3-axis gantry stage system
9. High-precision dynamic phase-locked loop ultrasonic transducer system
TECHNICAL SPECIFICATION
| Bond Precision | ±3μm@3sigma |
|---|---|
| Bond Speed | ≥1.5 wires/s |
| Bond Wire Type | Al (100~500μm), Cu(100~300μm) |
| Loop Control | Programmable, fixed length and height loop control |
| Bond Area | Max area:305mmx457mm, rotation:±220° |
| Z Axis | 50mm Z-stroke, 0.1μm resolution |
| Capillary Length | 2.5/2 inches |
|---|---|
| Device Depth | Max: 35mm |
| Bond Force | 50~2000g |
| Ultrasonic | Frequency: 60KHz； Power: 0~65W, support ramp mode |
| Operating System | Windows |
| Weight | About 1.2T |
FACILITY REQUIREMENT
| Power Input | 220V±10%@50~60Hz |
|---|---|
| Power Consumption | 1KW |
| Air Pressure | ≥0.35MPa |
|---|---|
| Footprint | ≤1000 x 1500 x 1700mm(W x D x H) |
