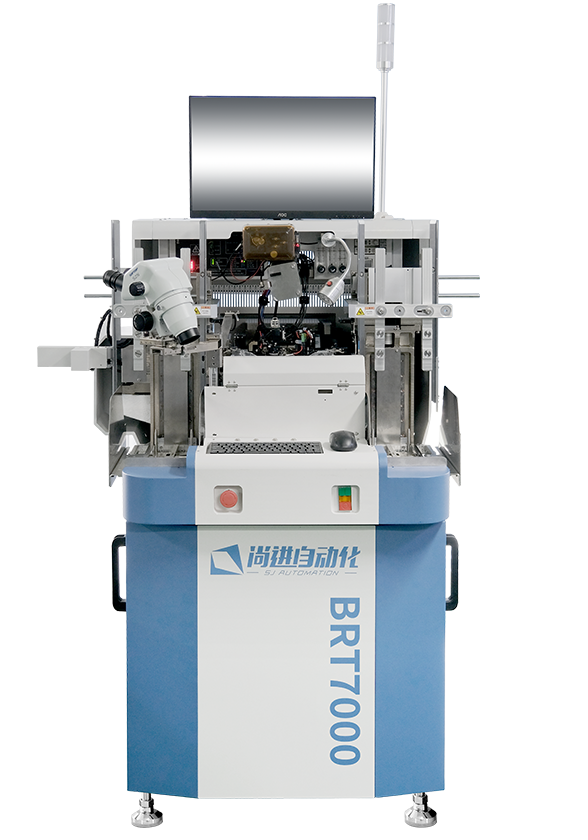

FULLY AUTOMATIC WIRE BONDER
BRT7000
FEATURES：
1. Highly rigid work holder
2. Dual frequency transducer
3. PR Look Ahead function
4. Highly reliable tuning system
5. Multi-channel, multi-stage EFO
6. Unique high rigidity X-Y table rail
7. Programmable fully automated MHS
8. Programmable autofocus optical / dual optical
TECHNICAL SPECIFICATION
| Bonding Accuracy | ±2μm@3sigma |
|---|---|
| Bonding Speed | 45ms(2mm wire length) |
| Wire Type | Gold, Copper, CuPd, Ag, Alloy wire (18~50μm) |
| Bonding Stroke | 60mm×90mm(LF width ≤100mm) |
| Length of Wire Bonding | ≤7mm |
| Min Bond Pad Pitch | 45μm |
| Wire Bonding Capacity | 30,000 wires/panel |
|---|---|
| Spool Diameter | 50mm (2 inches) |
| Loop Types | Q-Loop，SQ-Loop，BGA-Twist |
| Optical System | Option between x2~x4 and x1.6~x3.6 times, both with programmable focus |
| Operation System | Windows |
| Weight | 650kg |
FACILITY REQUIREMENT
| Input Voltage | 220V±10%@50/60Hz |
|---|---|
| Rated Power | 2KW |
| Compressed Air Pressure | ≥0.35MPa |
|---|---|
| Footprint | 1300 x 1000 x 1700(W x D x H) |
