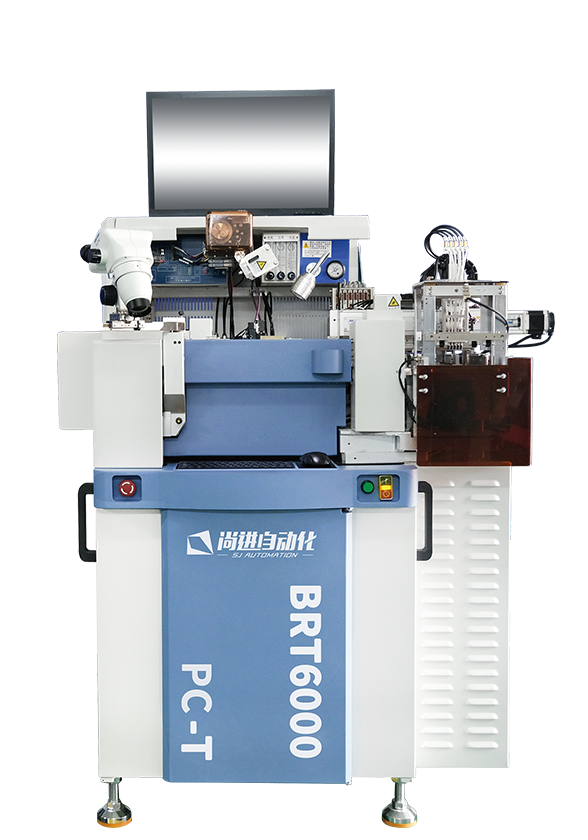

FULLY AUTOMATIC WIRE BONDER
BRT6000PC-T
FEATURES：
1. High efficiency of material transfer and clamping system
2. Programmable Focus Optics
3. High efficiency and accuracy XYZR direct drive system
4. Fast device conversion (less than 30 minutes)
5. PR Lookahead feature (higher UPH)
TECHNICAL SPECIFICATION
| Bonding Accuracy | ±3μm@3sigma |
|---|---|
| Bonding Speed | TO56 UPH ＞1K@4wires(x3 rotated looping) |
| Wire Type | Gold (18~50μm) |
| Bonding Stroke | 60mm×45mm |
| Length of Wire Bonding | ≤7mm |
| Loop Types | Programmable |
| Top Plate Height | 5.2mm |
| Min Bond Pad Pitch | 45μm |
|---|---|
| Bond Force | 0~360g |
| Spool Diameter | 50mm (2 inches) |
| Optical System | Option between x2~x4 and x1.6~x3.6 times, both with programmable focus |
| Operation System | Windows |
| Weight | 700kg |
FACILITY REQUIREMENT
| Input Voltage | 220V±10%@50/60Hz |
|---|---|
| Rated Power | 2KW |
| Compressed Air Pressure | ≥0.35MPa |
|---|---|
| Footprint | 1250 x 950 x 2100(W x D x H) |
